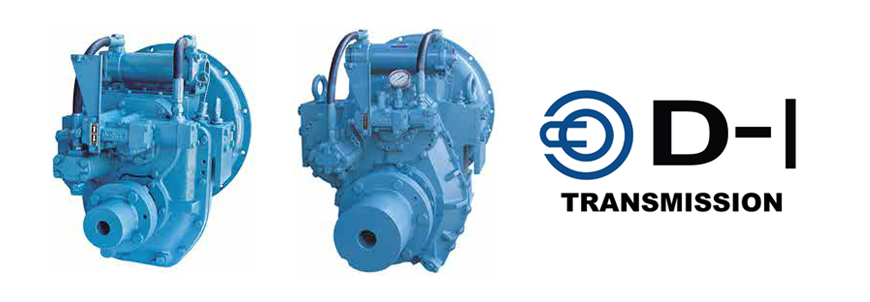

Transmisiones Marinas: Con certificaciones de calidad ISO, DNV-GL, ABS

MODEL REDUCTION RATIO POTENCIA (HP)
DMT18A 1.64*, 2.17, 2.52, 3.13, 3.32 48
DMT25AL 1.64*, 2.07, 2.52, 2.96, 3.32 80
DMT50A 1.61*, 2.06, 2.45, 2.82, 3.12, 3.46 160
DMT90T 1.61*, 2.06, 2.45, 2.82, 3.12, 3.46 250
DMT100HL 4.07, 4.50, 4.95, 5.29, 5.94* 280
DMT100T 1.61*, 2.06, 2.45, 282 280
DMT100IV 1.21, 1.54, 1.84, 2.12, 2.52 (V-DRIVE) 290
DMT110A 1.77*, 2.09, 2.42, 2.82, 3.19, 3.81 300
DMT140H 1.97*, 2.57, 3.03, 3.46 380
DMT135HL 4.07, 4.50, 4.95 380
DMTP5100 1.47*, 1.76*, 1.93*, 2.48, 3.08, 3.46 490
DMT150H 1.83*, 2.09, 2.51, 3.08, 3.43 490
DMT170HL 4.04*, 4.48* 490
DMT180HL 5.15*, 5.96* 490
DMT200H 1.83, 2.09, 2.51, 3.08, 3.43 580
DMT200HL 4.04, 4.48 580
DMT240H 1.50*, 1.97, 2.44, 2.93, 3.40 630
DMT260H 2.06, 2.50, 2.92, 3.26 750
DMT260HL 3.56, 4.08, 4.52, 5.04 720
DMTP6500 5.11, 5.62, 5.91, 6.57, 6.95 720
DMT280H 2.06, 2.50, 2.92, 3.26 870
DMTP7500 3.56, 4.13, 4.59 870
DMT400H 1.43*, 1.72, 2.03, 2.46, 2.75* 1,320 - 1,000
DMT400HL 3.02*, 3.28*, 3.56, 4.07, 4.48, 4.95 1,320 - 1,050
DMT550HL 3.02, 3.28, 3.56, 4.07, 4.48, 4.95 1,600 - 1,400
